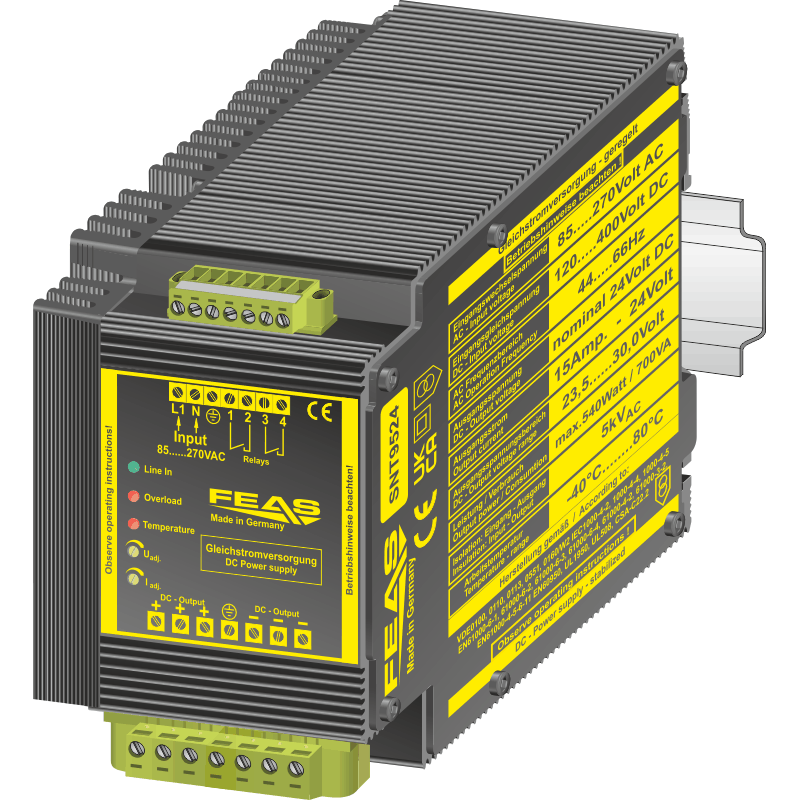

Switch-mode power supply SNT9524
FEAS article number 581916
Price per unit:
€695.40 *
commercial customers acc. to § 14 BGB only
Prices ex works, plus packaging, shipping (and VAT / DE)
| Quantity | Unit price | Discount |
|---|---|---|
| To 2 | €695.40 * | 0 % |
| From 3 | €681.49 * | 2 % |
| From 5 | €660.63 * | 5 % |
| From 10 | €646.72 * | 7 % |
| From 20 | €632.81 * | 9 % |
| From 50 | €625.86 * | 10 % |
commercial customers acc. to § 14 BGB only
Prices ex works, plus packaging, shipping (and VAT / DE)
available upon request
The switch-mode power supplies of the SNT95 series are powerful and robust devices to power... more
Product information "Switch-mode power supply SNT9524"
The switch-mode power supplies of the SNT95 series are powerful and robust devices to power sensitive loads in a hard industrial environment. These features result from the modern construction with a good radio shielding and high reliability integrated in a functional and stable casing. The short circuit proof output DC voltage of this type can be adjusted. The output current can rise to 130% of rating, therefore this power supply is suitable for loads requiring high starting current.
- PFC acc. to IEC/EN 61000-3-2
- Switch-mode controller with low residual ripple
- Output adjustable
- Boost with 130%
- Relay contact for remote monitoring (overload and overtemperature)
- Operating status shown by LED
- Parallel connection possible
- Short circuit proof
- Output protected against polarity reversal
- Overload- and open circuit protected
- Suitable for the tropics - epoxy resin casted
- Output separated according to VDE 0551
- Extra low safety potential PELV (EN 60204), SELV (EN 62368)
- Safety according to VDE, EN, UL, CSA
Technical data
more
Technical data "Switch-mode power supply SNT9524"
| Input voltage (VAC): | 85 - 270 VAC (44- 66 Hz) |
| Input voltage (VDC): | 120 - 400 VDC |
| Output voltage: | 24 VDC |
| Adjustment range: | 23.5 - 30.0 VDC |
| Output current: | 15.0 A |
| Power: | 360.0 W |
| Efficiency: | 93% |
| Residual ripple: | < 50 mVSS |
| Operating temperature range: | -40°C / +80°C |

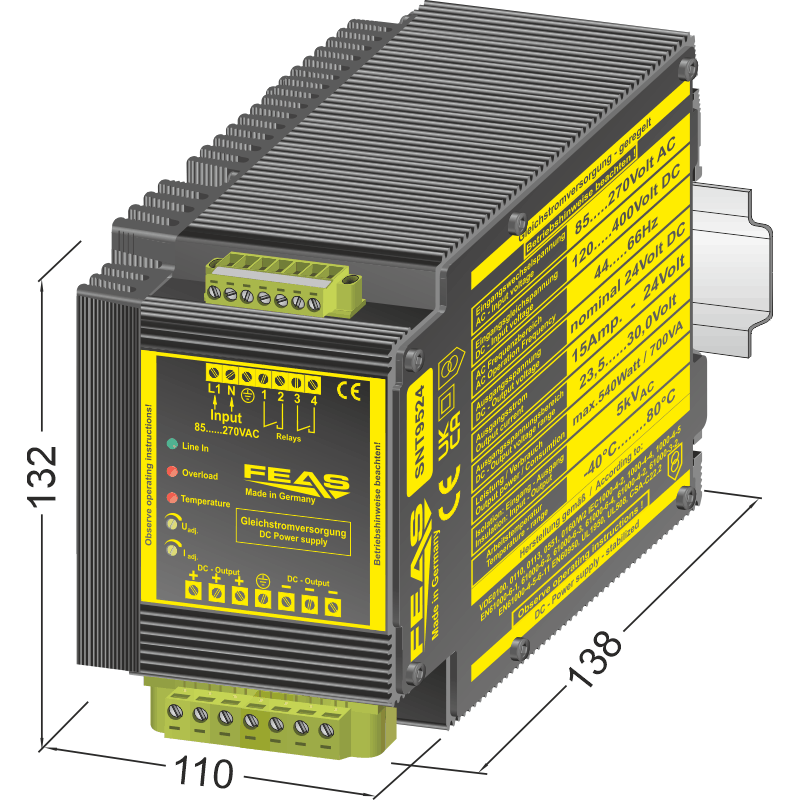

| Dimensions (WxHxD): | 110 x 132 x 138 mm |
| Weight: | 4.30 kg |
| Mounting: | On rails acc. to DIN 46277, wall mounting possible |
Downloads "Switch-mode power supply SNT9524"
|
Data sheet SNT9424 (160,5 KB) Technical data for power supply SNT9424 |
Öffnen/Herunterladen | |
|
Product specification SNT9424 (205,3 KB) Further information about power supply SNT9424 |
Öffnen/Herunterladen | |
|
Manual SNT94 (590,5 KB) Operating instructions for power supplies of the series SNT94 |
Öffnen/Herunterladen |
