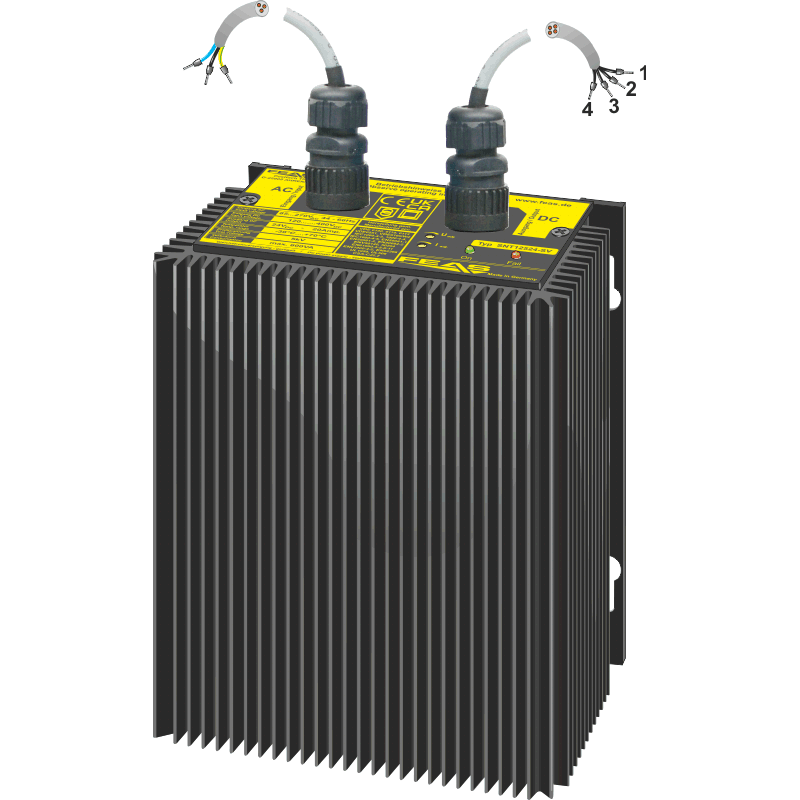

Switch mode power supply SNT12524-SV
FEAS article number 584426
Price per unit:
€785.70 *
commercial customers acc. to § 14 BGB only
Prices ex works, plus packaging, shipping (and VAT / DE)
| Quantity | Unit price | Discount |
|---|---|---|
| To 2 | €785.70 * | 0 % |
| From 3 | €769.99 * | 2 % |
| From 5 | €746.42 * | 5 % |
| From 10 | €730.70 * | 7 % |
| From 20 | €714.99 * | 9 % |
| From 50 | €707.13 * | 10 % |
commercial customers acc. to § 14 BGB only
Prices ex works, plus packaging, shipping (and VAT / DE)
available within 10 days
The switch mode power supplies of the SNT125 series are powerful and robust devices to power... more
Product information "Switch mode power supply SNT12524-SV"
The switch mode power supplies of the SNT125 series are powerful and robust devices to power sensitive loads in a hard industrial environment. These features result from the modern construction with a good radio shielding and high reliability integrated in a functional and stable casing. The short circuit proof output DC voltage of this type can be adjusted. The output current can rise to 120% of rating, therefore this power supply is suitable for loads requiring high starting current.
- Input: Hirschmann plug, supplied with approx. 1.0 m cable, special length available on request (Order No.: 99014)
- Output: Hirschmann plug, supplied with approx. 1.0 m cable, special length available on request (Order No.: 99035)
- IP67 (with additional poti cover)
- Boostfunction: 120% Iout up to 5min
- Device protection: shutdown on overtemperatur, automatic restart
- PFC acc. to IEC/EN 61000-3-2
- Output separated according to VDE 0570
- Overload- and open circuit protected
- Extra low safety potential PELV (EN 60204), SELV (EN 62634)
- Short circuit proof
- Operating status shown by LED
- Parallel connection possible
- Output protected against polarity reversal
- Suitable for the tropics - epoxy resin casted
- Safety acc. to VDE, EN, UL, CSA
Technical data
more
Technical data "Switch mode power supply SNT12524-SV"
| Input voltage (VAC): | 85 - 270 VAC (44-66 Hz) |
| Input voltage (VDC): | 120 - 400 VDC |
| Output voltage: | 24 VDC |
| Adjustment range: | 22.5 - 30.0 VDC |
| Output current: | 20.0 A (adjustable 10.0 A - 24.0 A) |
| Power nom./boost: | 480 W / 575 W |
| Efficiency: | >93% |
| Residual ripple: | < 50mVSS |
| Operating temperature range: | -30°C / +70°C |

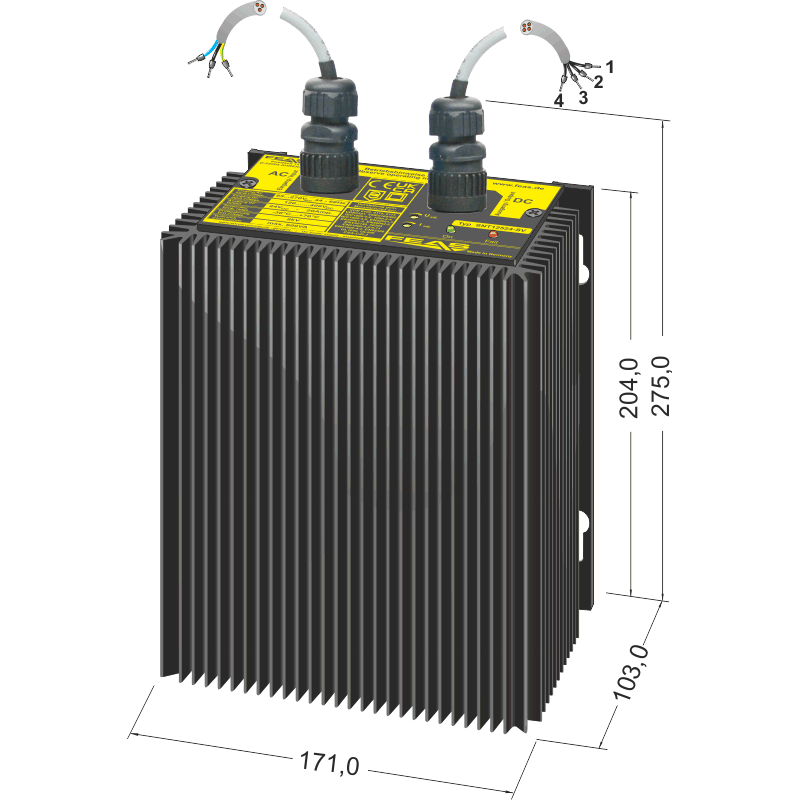

| Dimensions (WxHxD): | 171.0 x 275.0 x 103.0 mm |
| Weight: | 7.50 kg |
| Mounting: | wall mounting with screws |
Downloads "Switch mode power supply SNT12524-SV"
|
Data sheet SNT12524-SV (377,7 KB) Technical data for power supply SNT12524-SV |
Öffnen/Herunterladen | |
|
Manual SNT125-NSK, NSV, SK, SV (2,3 MB) Operating instructions for power supplies of the series SNT125-NSK, NSV, SK, SV |
Öffnen/Herunterladen | |
|
Product specification SNT12524-SV (447,1 KB) Further information about power supply SNT12524-SV |
Öffnen/Herunterladen |
