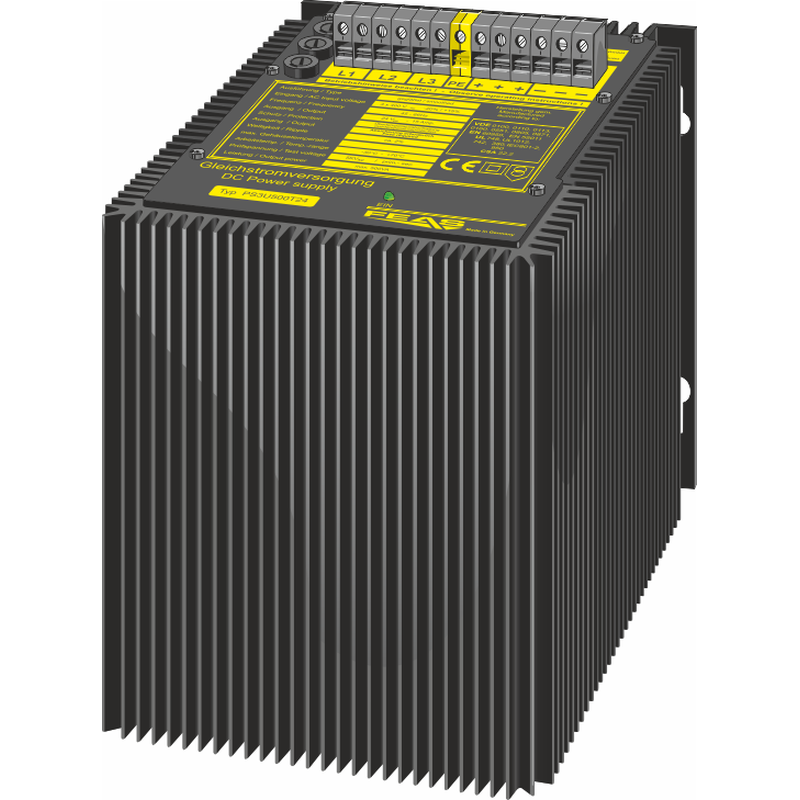

Power supply PS3U500T24
FEAS article number 581426
Price per unit:
€446.40 *
commercial customers acc. to § 14 BGB only
Prices ex works, plus packaging, shipping (and VAT / DE)
| Quantity | Unit price | Discount |
|---|---|---|
| To 2 | €446.40 * | 0 % |
| From 3 | €437.47 * | 2 % |
| From 5 | €424.08 * | 5 % |
| From 10 | €415.15 * | 7 % |
| From 20 | €406.22 * | 9 % |
| From 50 | €401.76 * | 10 % |
commercial customers acc. to § 14 BGB only
Prices ex works, plus packaging, shipping (and VAT / DE)
available within 10 days
The power supplies of the PS3U500 series are powerful and robust devices to power electrical... more
Product information "Power supply PS3U500T24"
The power supplies of the PS3U500 series are powerful and robust devices to power electrical loads, like contactors, magnetic switches, magnetic valves, relays or something like that. Power supplies of this type are suitable as well for the most PLC-applications.
By using only few components the uncomplex circuit arrangement guarantees the advantage of a long life span and a high degree of efficiency (>80%).
This power supply is optimally suited for loads requiring high starting current. Because of its robust design, casted in a rugged aluminum housing, it is particularly suitable for being used in rough industrial environment, e.g. in shipbuilding. Furthermore it is quite insensitive to surge voltages.
By using only few components the uncomplex circuit arrangement guarantees the advantage of a long life span and a high degree of efficiency (>80%).
This power supply is optimally suited for loads requiring high starting current. Because of its robust design, casted in a rugged aluminum housing, it is particularly suitable for being used in rough industrial environment, e.g. in shipbuilding. Furthermore it is quite insensitive to surge voltages.
- Unregulated Power Supply
- for 3 x 400VAC input voltage
- IP65, cable connection
- Output separated according to VDE 0551
- Smoothed output
- Extra low safety potential PELV (EN 60204), SELV (EN 62368)
- Simple wall mounting with screws
- Operating status shown by LED
- Parallel connection possible
- Vibration proof, suitable for the tropics - epoxy resin casted
- Conforms to EMC and low voltage directive
- Safety acc. to VDE, EN, UL, CSA
Technical data
more
Technical data "Power supply PS3U500T24"
| Input voltage (VAC): | 3 x 400 VAC (45-66 Hz) |
| Output voltage: | 24 VDC |
| Output current: | 15.0 A |
| Power: | 360.0 W |
| Efficiency: | 90% |
| Residual ripple: | < 2% |
| Operating temperature range: | -30°C / +70°C |

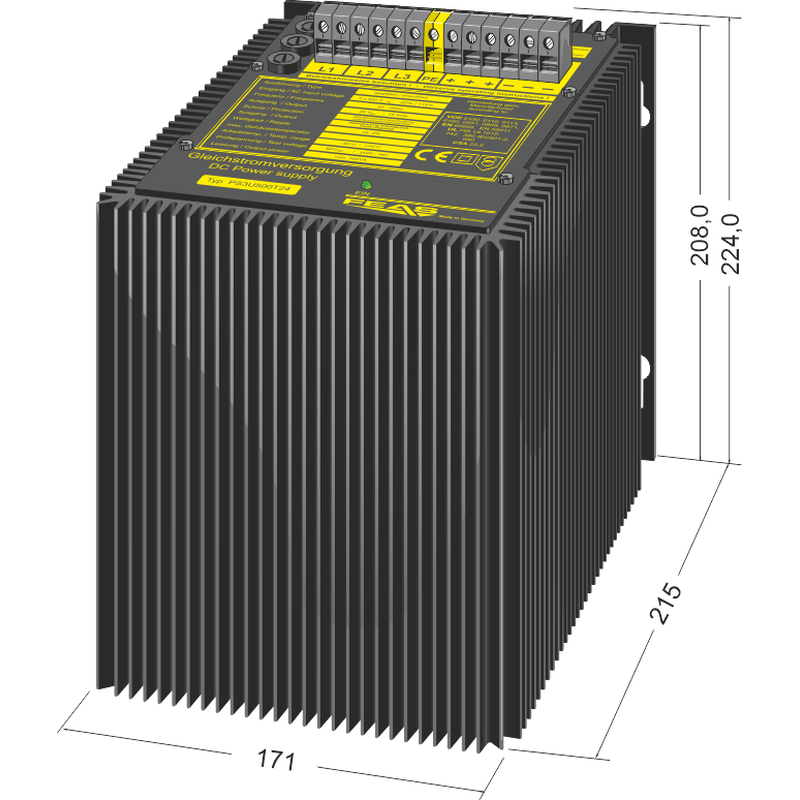

| Dimensions (WxHxD): | 171.0 x 224.0 x 215.0 mm |
| Weight: | 16.35 kg |
| Mounting: | wall mounting with screws |
Downloads "Power supply PS3U500T24"
|
Manual PSU500T, 750, 1K2 (351,9 KB) Operating instructions for power supplies of the series PSU500T, 750, 1K2 |
Öffnen/Herunterladen | |
|
Product specification PS3U500T24 (270,6 KB) Further information about power supply PS3U500T24 |
Öffnen/Herunterladen | |
|
Data sheet PS3U500T (159,2 KB) Technical data for power supply PS3U500T |
Öffnen/Herunterladen |
