LDR40MH12-HT-W - Power supply with output buffering
FEAS article number 58993301
Price per unit:
€515.10 *
commercial customers acc. to § 14 BGB only
Prices ex works, plus packaging, shipping (and VAT / DE)
| Quantity | Unit price | Discount |
|---|---|---|
| To 2 | €515.10 * | 0 % |
| From 3 | €504.80 * | 2 % |
| From 5 | €489.34 * | 5 % |
| From 10 | €479.04 * | 7 % |
| From 20 | €468.74 * | 9 % |
| From 50 | €463.59 * | 10 % |
commercial customers acc. to § 14 BGB only
Prices ex works, plus packaging, shipping (and VAT / DE)
available within 10 days
These FEAS-Accumulator packs with electronic charging regulators are suited to buffer 12 Volt... more

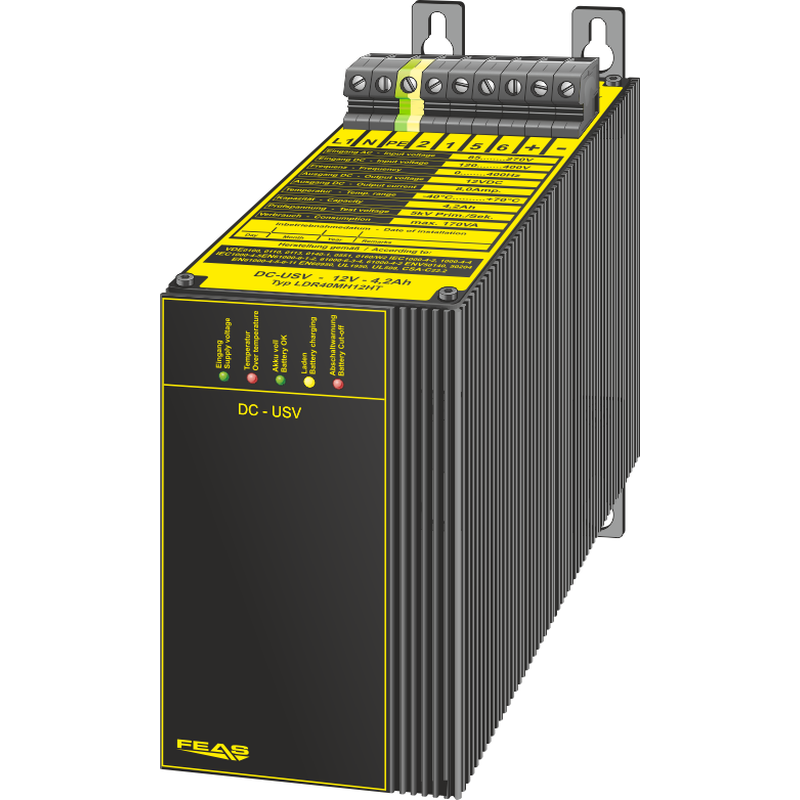

Product information "LDR40MH12-HT-W - Power supply with output buffering"
These FEAS-Accumulator packs with electronic charging regulators are suited to buffer 12 Volt systems. They will ensure the power supply in case of a mains power failure and prevent the loss of your valuable data or the total breakdown of your production line. Regardless of for what you will apply the DC-UPS, you will always have the perfect protection against blackouts, which oftentimes can cause high costs.
- Extreme temperature accupack: -40 .... + 70°C
- Output separated according to VDE 0551
- Extra low safety potential PELV (EN 60204), SELV (EN 62368)
- Overload- and open circuit protected
- Operating status shown by LED
- Output protected against polarity reversal
- Suitable for the tropics - epoxy resin casted
- Safety acc. to VDE, EN, UL, CSA
Battery replacement
To exchange the batteries, you will need:
- 1x Accumulator 12V 4400mAh (38979)
Technical data
more
Technical data "LDR40MH12-HT-W - Power supply with output buffering"
| Input voltage (VAC): | 85-270 VAC (0-400 Hz) |
| Input voltage (VDC): | 120-400 VDC |
| Output voltage: | 9,8 - 13,0 VDC |
| Output current: | 8.0 A |
| Capacity: | 4.2 Ah |
| Power: | 96.0 Watts |
| Efficiency: | 86% |
| Residual ripple: | < 25 mVPP |
| Operating temperature range: | -40°C / +70°C |

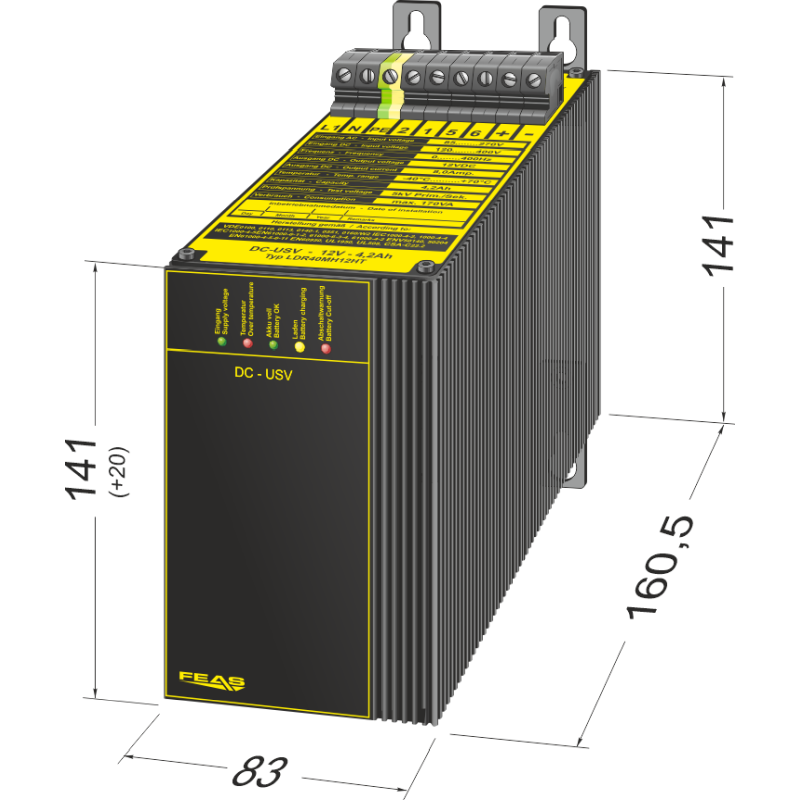

| Dimensions (WxHxD): | 83.0 x 161.0 x 160.5 mm |
| Weight: | 3.50 kg |
| Mounting: | wallmounting with screws |
Downloads "LDR40MH12-HT-W - Power supply with output buffering"
|
Manual LDR40-HT (736,5 KB) Operating instructions for power supplies of the series LDR40-HT |
Öffnen/Herunterladen | |
|
Data sheet LDR40MH12-HT (96,0 KB) Technical data for power supply with output buffering LDR40MH12-HT-W |
Öffnen/Herunterladen | |
|
Product specification LDR40MH12-HT (138,7 KB) Further information about the power supply with output buffering LDR40MH12HT-W |
Öffnen/Herunterladen |
