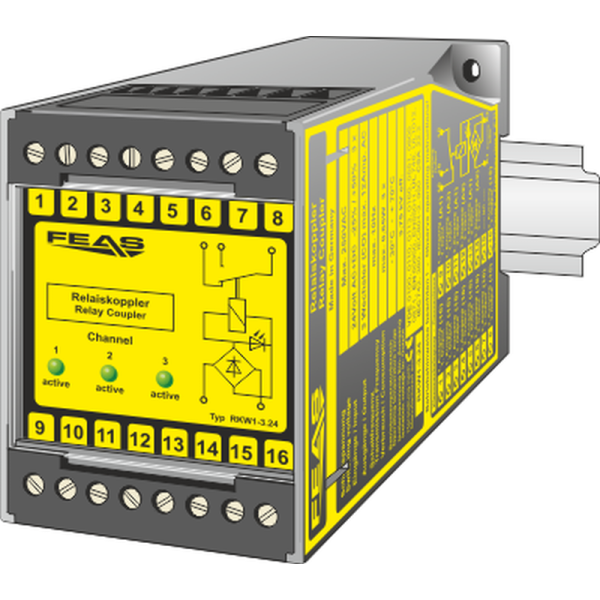

Relay coupler RKW1-3.24
FEAS article number 59135
Prices ex works, plus packaging, shipping (and VAT / DE)
| Quantity | Unit price | Discount |
|---|---|---|
| To 2 | €124.80 * | 0 % |
| From 3 | €122.30 * | 2 % |
| From 5 | €118.56 * | 5 % |
| From 10 | €116.06 * | 7 % |
| From 20 | €113.57 * | 9 % |
| From 50 | €112.32 * | 10 % |
Prices ex works, plus packaging, shipping (and VAT / DE)

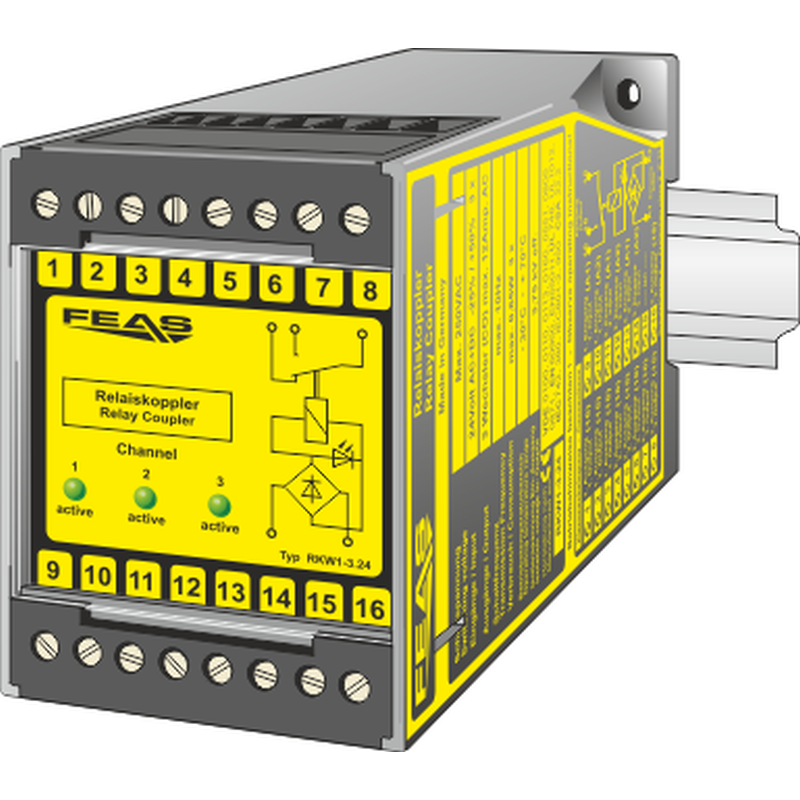

The relay coupler RKW1-3.24 is an interface module for galvanic isolation between control logic and process peripherals.
It features three electromechanical relays with changeover contacts, controlled by a 24 V AC/DC control voltage. The potential-free relay contacts are suitable for switching both AC and DC loads.
The switching state of each channel is indicated by LED status indicators. Input and output circuits are galvanically isolated.
The module is designed for 35 mm DIN rail mounting and is intended for industrial control and automation applications.
- Output separated
- Input suitable for AC and DC voltage
- Operating status shown by LED
- Precious metal contacts for greater switching performance
- Simple mounting on rail acc. to DIN 46277
- Conforms to EMC and low voltage directive
- Safety acc. to VDE, EN, UL, CSA
| Nominal input voltage: | 24 VAC / 24 VDC |
| Switching voltage (Output): | 250 VAC / 48 VDC |
| Switching current (Output): | max. 12 A / max. 2.4 A |
| Switching barrier: | ≥ 18 V |
| Number of channels: | 3 |
| Operating temperature range: | -30°C / +70°C |

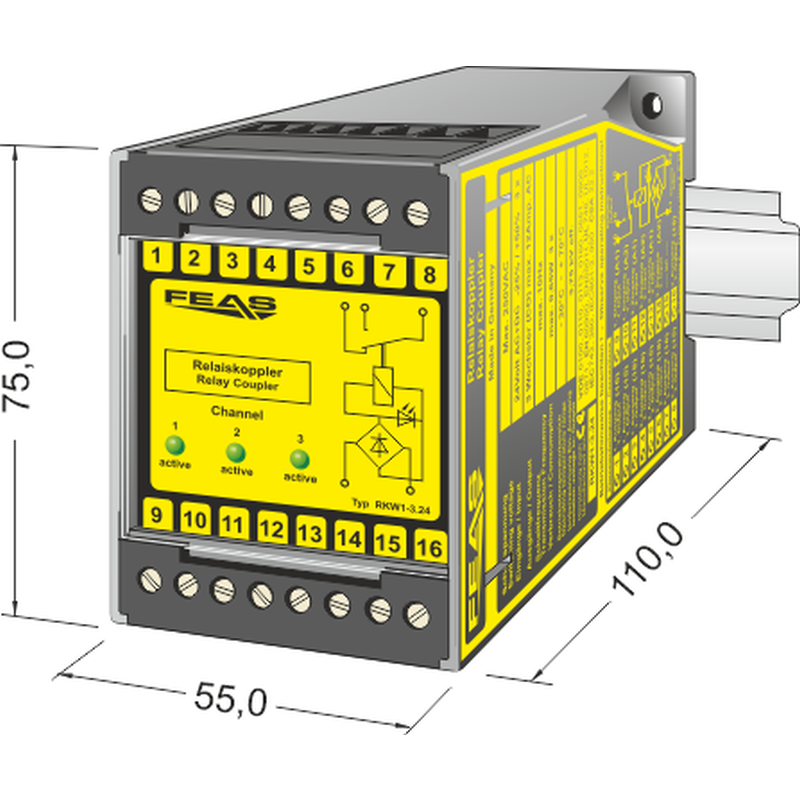

| Dimensions (WxHxD): | 55.0 x 75.0 x 110.0 mm |
| Weight: | 0.28 kg |
| Mounting: | on rails acc. to DIN 46277, wall mounting possible |
|
Product specification RKW1-3.24 (260,0 KB) Further information about relay coupler RKW1-3.24 |
Öffnen/Herunterladen | |
|
Manual relay coupler RKS / RKW (347,8 KB) Operating instructions for relay couplers RKS / RKW |
Öffnen/Herunterladen | |
|
Data sheet RKW1-3.24 (244,8 KB) Technical data for relay coupler RKW1-3.24 |
Öffnen/Herunterladen |
