Relay coupler RKW1-2.24
FEAS article number 59134
Prices ex works, plus packaging, shipping (and VAT / DE)
| Quantity | Unit price | Discount |
|---|---|---|
| To 2 | €124.80 * | 0 % |
| From 3 | €122.30 * | 2 % |
| From 5 | €118.56 * | 5 % |
| From 10 | €116.06 * | 7 % |
| From 20 | €113.57 * | 9 % |
| From 50 | €112.32 * | 10 % |
Prices ex works, plus packaging, shipping (and VAT / DE)

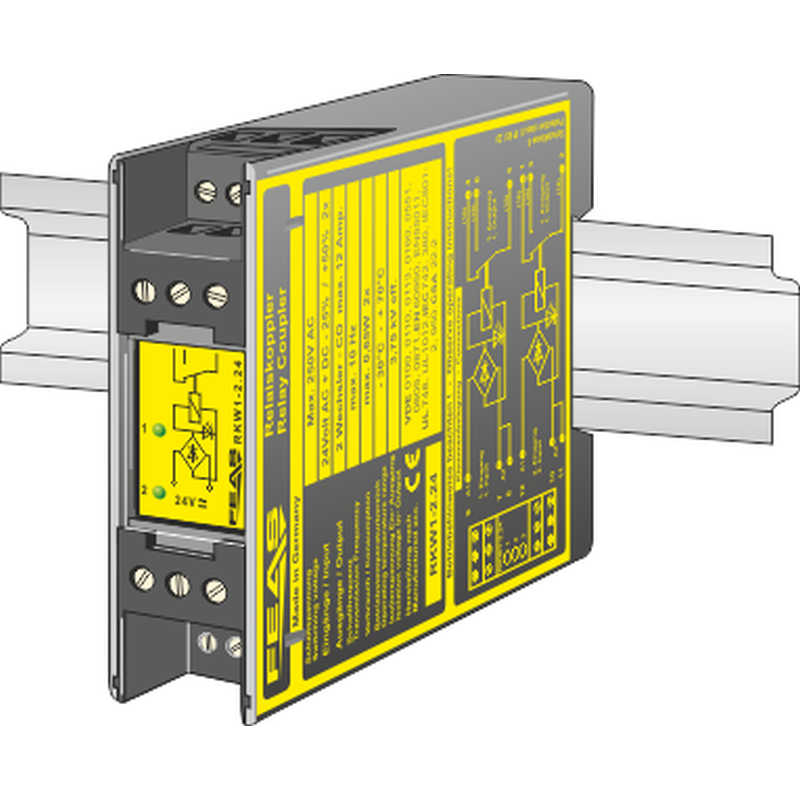

The relay coupler RKW1-2.24 is used as an interface module for galvanic isolation between process peripherals and control logic at low switching frequencies.
The device is equipped with two electromechanical relays with changeover contacts. The relays are controlled by a 24 V AC/DC control voltage. The potential-free contacts allow reliable switching of AC and DC loads.
The switching state of each channel is indicated by an integrated LED. Input and output circuits are galvanically isolated from each other.
The module is designed for 35 mm DIN rail mounting and is intended for use in industrial control and automation systems.
- Output separated
- Input suitable for AC and DC voltage
- Operating status shown by LED
- Precious metal contacts for greater switching performance
- Simple mounting on rail acc. to DIN 46277
- Conforms to EMC and low voltage directive
- Safety acc. to VDE, EN, UL, CSA
| Nominal input voltage: | 24 VAC / 24 VDC |
| Switching voltage (Output): | 250 VAC / 48 VDC |
| Switching current (Output): | max. 12 A / max. 2.4 A |
| Switching barrier: | ≥ 18 V |
| Number of channels: | 2 |
| Operating temperature range: | -30°C / +70°C |

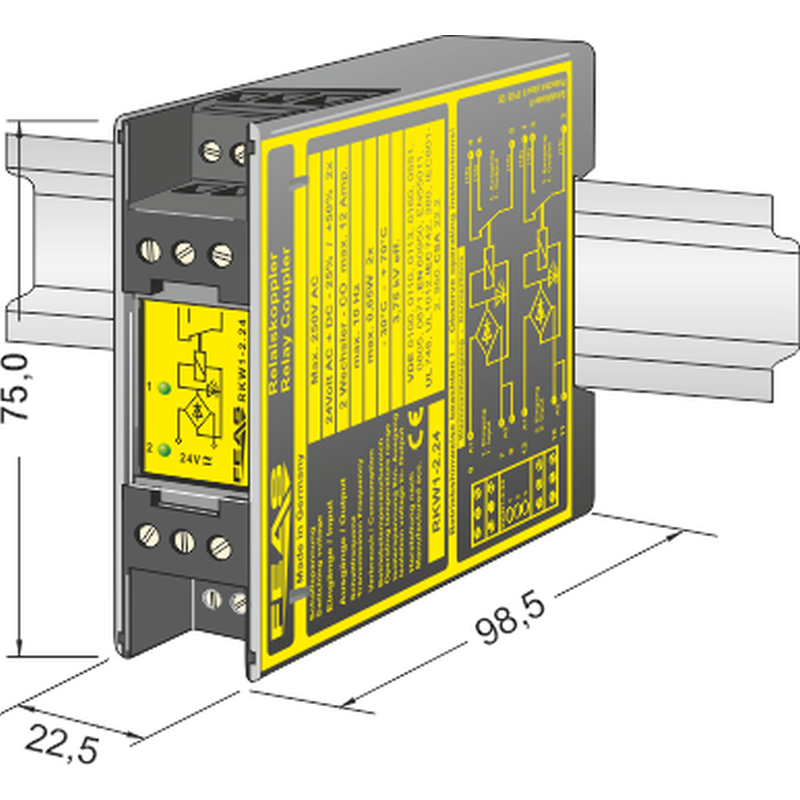

| Dimensions (WxHxD): | 22.5 x 75.0 x 98.5 mm |
| Weight: | 0.16 kg |
| Mounting: | on rails acc. to DIN 46277 |
|
