Relay coupler RKS2-4.24

Price per unit:

€124.80 *

commercial customers acc. to § 14 BGB only

Prices ex works, plus packaging, shipping (and VAT / DE)

Quantity	Unit price	Discount
To 2	€124.80 *	0 %
From 3	€122.30 *	2 %
From 5	€118.56 *	5 %
From 10	€116.06 *	7 %
From 20	€113.57 *	9 %
From 50	€112.32 *	10 %

commercial customers acc. to § 14 BGB only

Prices ex works, plus packaging, shipping (and VAT / DE)

available from stock

The relay coupler RKS2-4.24 is a four-channel relay module used for galvanic isolation between... more

Close menu

Product information "Relay coupler RKS2-4.24"

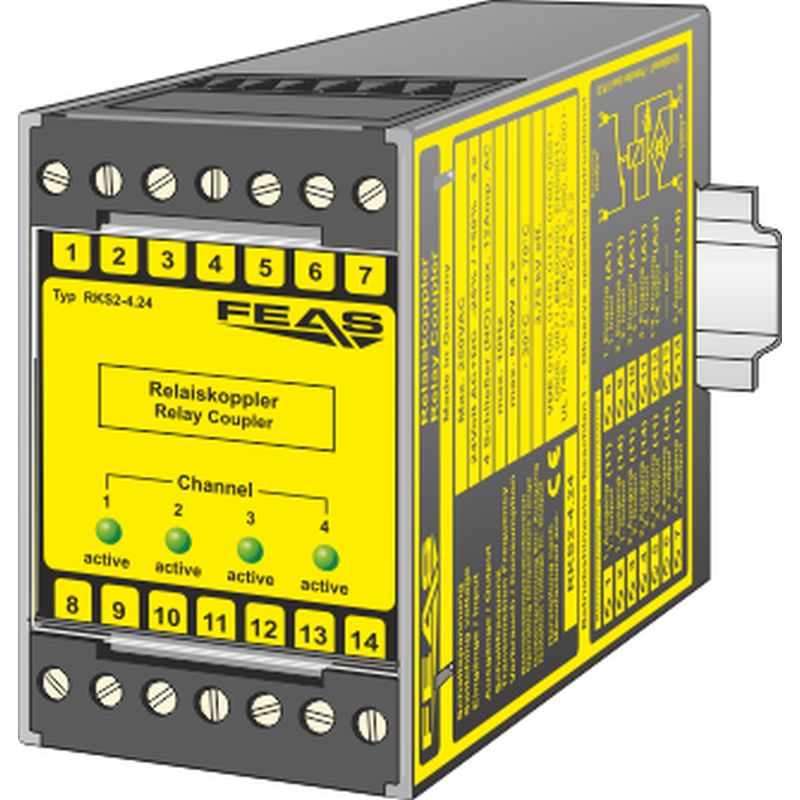

The relay coupler RKS2-4.24 is a four-channel relay module used for galvanic isolation between control logic and process peripherals. Designed for AC/DC control signals, it features four monostable electromechanical relays with potential-free contacts and LED status indication. The outputs are rated for switching loads up to 12 A at 250 V AC or 48 V DC. The robust construction is suitable for mounting on a 35 mm DIN rail in industrial environments.

Output separated
Input suitable for AC and DC voltage with a combined ground connection
Operating status shown by LED
Precious metal contacts for greater switching performance
Simple mounting on rail acc. to DIN 46277
Conforms to EMC and low voltage directive
Safety acc. to VDE, EN, UL, CSA

Technical data more

Close menu

Technical data "Relay coupler RKS2-4.24"

Nominal input voltage:	24 VAC / 24 VDC
Switching voltage (Output):	250 VAC / 48 VDC
Switching current (Output):	max. 12 A / max. 2.4 A
Switching barrier:	≥ 18 V
Number of channels:	4
Operating temperature range:	-30°C / +70°C

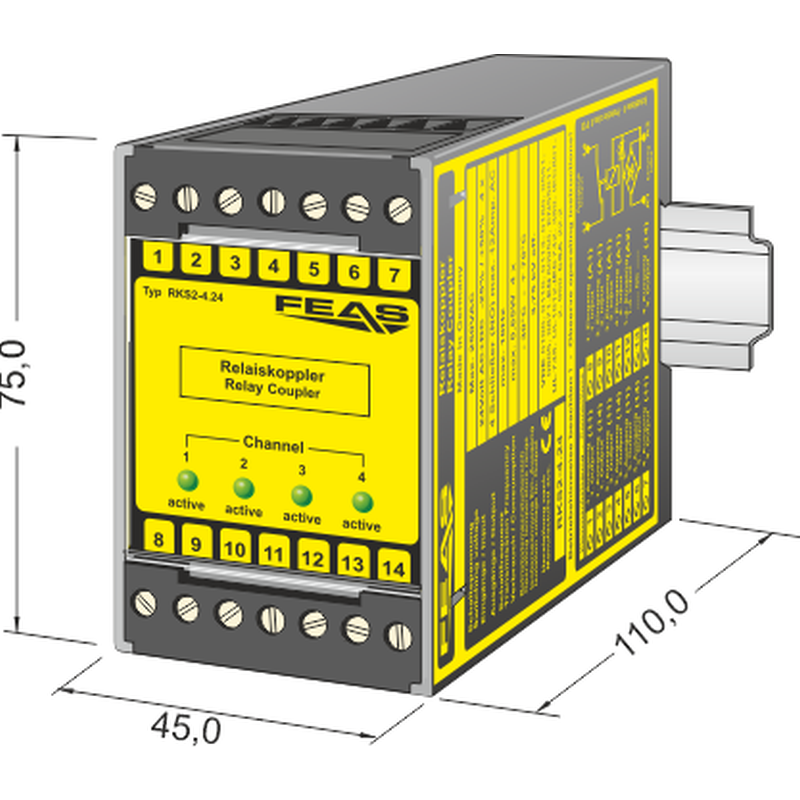

Dimensions (WxHxD):	45.0 x 75.0 x 110.0 mm
Weight:	0.28 kg
Mounting:	On rails acc. to DIN 46277
