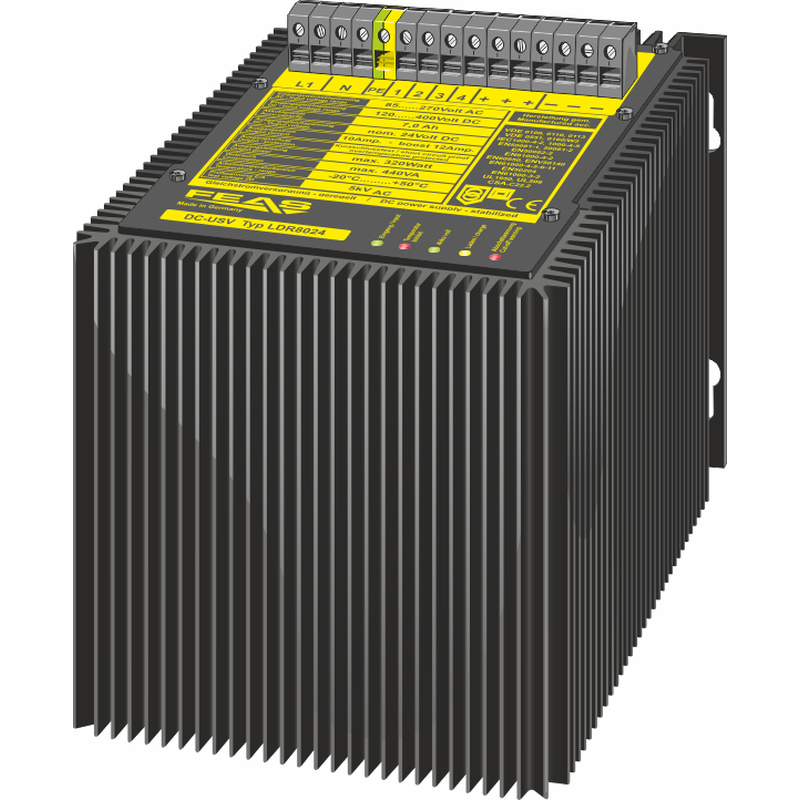

LDR8024 - Power supply with output buffering
FEAS article number 589927
Price per unit:
€583.60 *
commercial customers acc. to § 14 BGB only
Prices ex works, plus packaging, shipping (and VAT / DE)
| Quantity | Unit price | Discount |
|---|---|---|
| To 2 | €583.60 * | 0 % |
| From 3 | €571.93 * | 2 % |
| From 5 | €554.42 * | 5 % |
| From 10 | €542.75 * | 7 % |
| From 20 | €531.08 * | 9 % |
| From 50 | €525.24 * | 10 % |
commercial customers acc. to § 14 BGB only
Prices ex works, plus packaging, shipping (and VAT / DE)
available from stock
These FEAS-Accumulator packs with electronic charging regulators are suited to buffer 24 Volt... more
Product information "LDR8024 - Power supply with output buffering"
These FEAS-Accumulator packs with electronic charging regulators are suited to buffer 24 Volt systems. They will ensure the power supply in case of a mains power failure and prevent the loss of your valuable data or the total breakdown of your production line. Regardless of for what you will apply the DC-UPS, you will always have the perfect protection against blackouts, which oftentimes can cause high costs.
- Switch-mode power supply with battery buffering / UPS
- LED operating display
- Remote monitoring (relais)
- Extra low safety potential PELV (EN 60204), SELV (EN 62368)
- Overload- and open circuit protected, short-circuit proof
- PFC acc. to IEC/EN 61000-3-2
- Manual shutdown possible when running in buffer mode
- Lead-acid battery (Gel cell batteries)
- Automatic battery test
- Output protected against polarity reversal
- Suitable for the tropics - epoxy resin casted
- Safety acc. to VDE, EN, UL, CSA
Battery replacement
To exchange the batteries, you will need:
- 2x Accumulator 12V 9000mAh (9004)
Technical data
more
Technical data "LDR8024 - Power supply with output buffering"
| Input voltage (VAC): | 85-270 VAC (0-66 Hz) |
| Input voltage (VDC): | 120-400 VDC |
| Output voltage: | 24 VDC |
| Output current: | 10.0 A |
| Capacity: | 7.0 Ah |
| Power: | 280.0 Watts |
| Efficiency: | 91% |
| Residual ripple: | < 25 mVPP |
| Operating temperature range: | -20°C / +50°C |

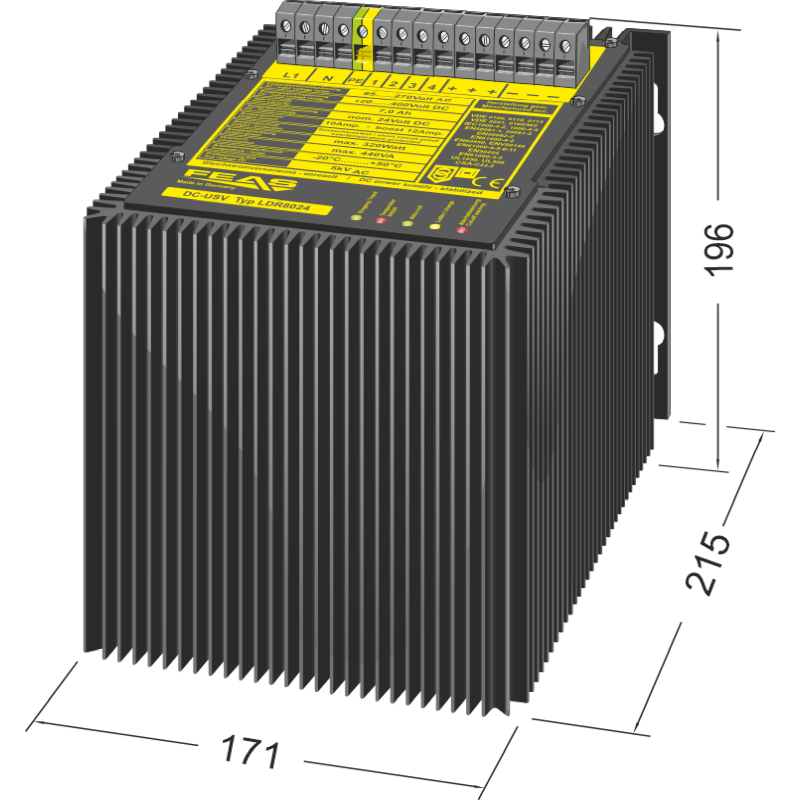

| Dimensions (WxHxD): | 171.0 x 196.0 x 215.0 mm |
| Weight: | 12.20 kg |
| Mounting: | wall mounting with screws |
Downloads "LDR8024 - Power supply with output buffering"
|
Data sheet LDR8024 (131,7 KB) Technical data for power supply with output buffering LDR8024 |
Öffnen/Herunterladen | |
|
Manual LDR8012 + LDR8024 (811,9 KB) Operating instructions for power supplies of the series LDR8012 + LDR8024 |
Öffnen/Herunterladen | |
|
Product specification LDR8024 (209,8 KB) Further information about the power supply with output buffering LDR8024 |
Öffnen/Herunterladen |
