Radio interference supression filter NFK870-16A32

[FEAS article number: 51096]

Price per unit: 127.20 €

commercial customers acc. to § 14 BGB only
19 % VAT plus., ex-factory price

Filters of the NFK870-A32 series are used to suppress circuit-bound interferences in three-phase AC power lines without neutral conductor.
Interference pulses or interference voltages are dampened independently from their point of origin.
To improve the filter effect they are designed with 2 stages, furthermore these filters are optimized against asymmetric interferences and have a high insertion loss on a broad frequency range.
  • High insertion loss over a broad frequency range
  • Optimised against asymmetric interferences
  • Using aluminium enclosure in order to improve the heat conduction
  • Suitable for the tropics - epoxy resin casted
  • Safety acc. to VDE, EN, UL, CSA
Radio interference supression filter NFK870-16A32
Rated voltage: 520 VAC
Rated current: 3 x 16.0 A
Inductance: 3 x 2.8mH + 3 x 2.8mH
Capacity: 6 x 0.47µF + 4 x 22nF
Operating temperature range: -40°C / +85°C

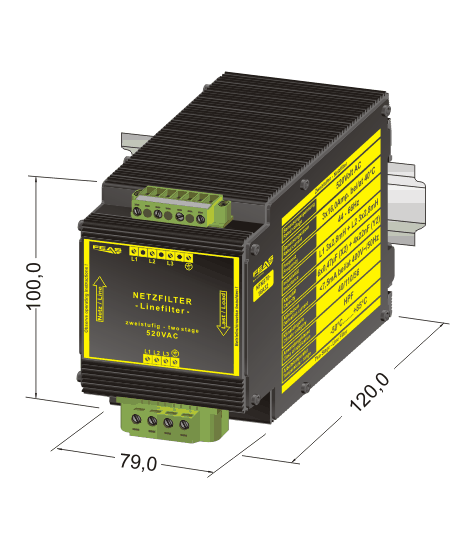

Dimensions (WxHxD): 79.0 x 100.0 x 120.0 mm
Weight: 2.10 kg
Mounting: On rails acc. to DIN 46277, wall mounting possible
Data sheet NFK870-16A32 (195.22 KB)

Technical data for the radio interference supression filter NFK870-16A32

Open/download file
Manual NFK855-31 / NFK870-32 (1.01 MB)

Operating instructions for the radio interference supression filter of the serie NFK855-31 / NFK870-32

Open/download file
Product specification NFK870-16A32 (201.58 KB)

Further information about the radio interference supression filter NFK870-16A32

Open/download file
from 1 pcs. 3 pcs. 5 pcs. 10 pcs. 20 pcs. 50 pcs. 100 pcs. 200 pcs. 500 pcs.
Discount 0 % 2 % 5 % 10 % 15 % 20 % 25 % 26 % 27 %
Price per unit 127.20 € 124.66 € 120.84 € 114.48 € 108.12 € 101.76 € 95.40 € 94.13 € 92.86 €

To enlarge please click the desired image
available from stock
